CNC SYSTEM

  • Fanuc 0i-TD Control

MACHINE SPECFICATION

  • Table Diameter: 1200mm (Manual 4 Jaw Chuck)
  • Max. Turning Diameter: 1400mm
  • Max. Swing: 1600m
  • Max. Workpiece Weight: 5000Kgs
  • Max. Height under Crossrail: 1100mm
  • Rail Travel (vertical): 420mm
  • Ram Travel (horizontal): 1050mm
  • Ram Travel (vertical): 750mm
  • Ram Cross-section: 260mm x 230mm
  • Table Drive: 47.8Kw DC (64hp)
  • Table Speeds: 10 – 250rpm, in 3 ranges (Full Power from 25rpm)
  • No. of Pockets in Tool Magazine: 12
  • Totally Enclosed & Interlocked Guarding System
  • Swarf Conveyor
  • Machine Weight: 18,000kgs (approx)
  • Floor Space: To be confirmed

COMMENTS

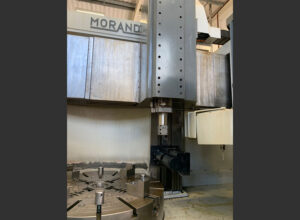

As part of our ongoing Stock Machine Re-manufacture Programme, EES has recently acquired 5 off – Morando VLN12 CNC Vertical Borers; this is the 2nd of those machines to be rebuilt and is now available for IMMEDIATE DELIVERY.

As with all machines in the EES stock rebuild programme, the machine has been stripped to component level and has been fully re-manufactured to a very high specification, in accordance with BS4656 Part 22.

The machine has also been retrofitted with a new Fanuc 0i-D Control, all new Fanuc Servo Motors & Drives and a complete new Electrical Interface.

The machine is supplied with a new Operator Guarding System , in accordance with PUWER, and a new Swarf Conveyor
