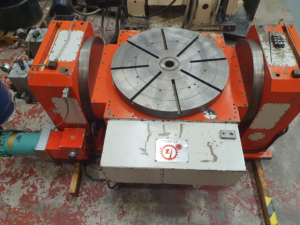

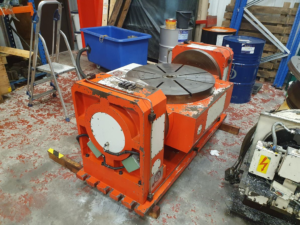

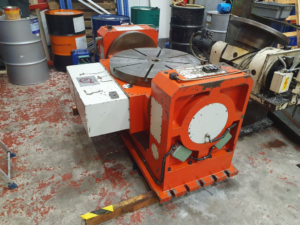

ZEATZ type PT2 ACNE 800 CNC ROTARY & TILTING TABLE

  • HOME
  • /
  • ZEATZ type PT2 ACNE 800 CNC ROTARY & TILTING TABLE

TABLE SPECIFICATION

Table: 800mm diameter
Max. Component: 900mm diameter
1,200Kg
T Slot: 18H7 (central)
18H12 (rest)
Centre Bore: 75mm (H7)
Tilt Angle: 90° to -30°

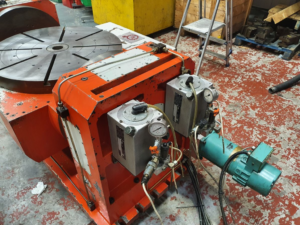

Breaking System: Automatic Hydraulic Clamping
Rotation Speed: 4.5rpm (Rotation)
2.3rpm (Tilt)
Rotation Accuracy: ± 5 Secs of Arc (when new)
Max. Work Load: 1,500Kg

COMMENTS

The Table can be supplied:

a) “As Is”

or

b) Fully refurbished and interfaced to one of your existing Machine Tools
